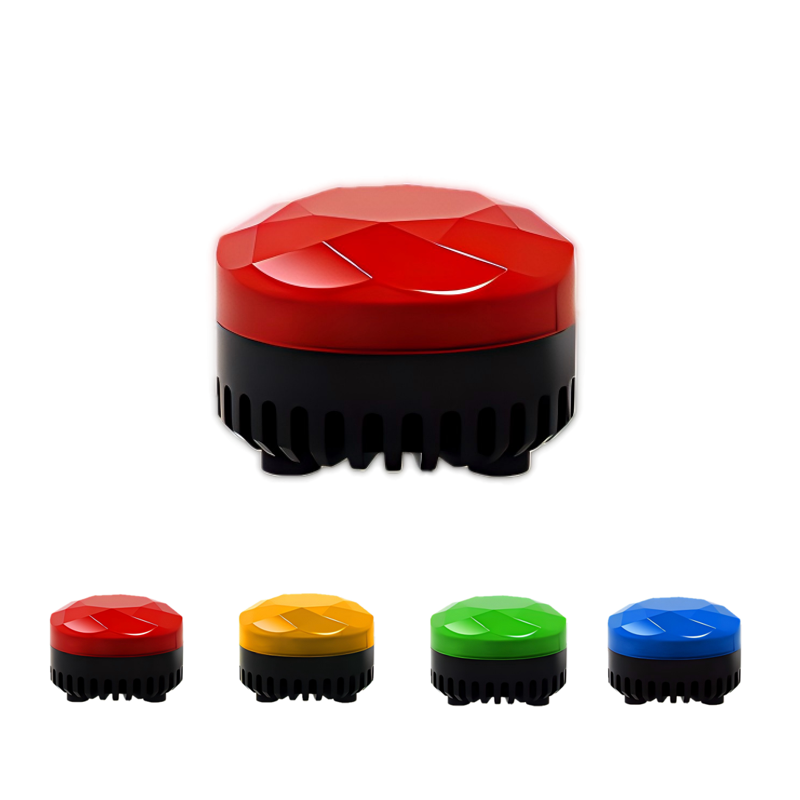

905X Mini Rotating Warning Light

The 905X Series warning light delivers professional-grade sound and light warnings in a compact 70x50mm housing. Designed for engineering vehicles, machine tools, power equipment, and industrial machinery, this IP65-rated beacon offers four selectable light modes: flash, rotation, strobe, and steady-on. The "With Alarm" variant features an MP3-compatible audio system (8~320Kbps) that outputs up to 105dB within 1 meter – enough to cut through noisy environments.

Feature List

• 4 Visual Modes – Flash, rotation, strobe, and steady light for versatile warning needs.
• Loud Audible Alert (Optional) – Up to 105dB @1m with MP3 support and 10 preset tones.
• 6-Level Adjustable Volume – Customize loudness without distortion.
• IP65 Rugged Protection – Dust-tight and water-resistant for harsh environments.
• Wide Voltage & Temperature – DC 9-30V operation, -20℃ to 70℃ ambient range.
• Flexible Mounting – Standard fixing nuts + optional magnetic base for quick deployment.

Model	SF-905X
	With alarm	Only light
Power	DC 9~30V
Cable define	Red + Black -
Size	70X50mm

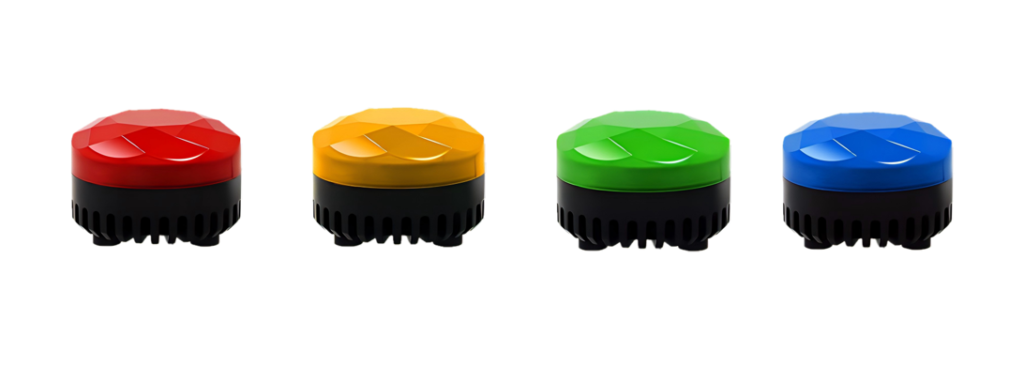

Color	Red, Orange, Green, Blue
Audio format	MP3（bitrate：8~320Kbps）	without
Work Current	Only light≤130MA（DC9V）With alarm ≤700MA（DC9V）	≤130MA（DC9V）
Audio output power	4Ω / 3W (typical)	NO
sound degree	within 1 meter ≤105dB	NO
Sound mode	default 10 kinds of warning tone adjustable	NO
Volume level	6 level adjustable	NO
Light mode	Flash, Rotation, Strobe, Light all the time
Magnetic	Optional
Proof	IP65
Initialization time	≤1sec(with alarm)
Ambient temperature	-20℃～70℃
Relative humidity	10%～95%
Attachment	Instruction manual X1Fixing nut X3

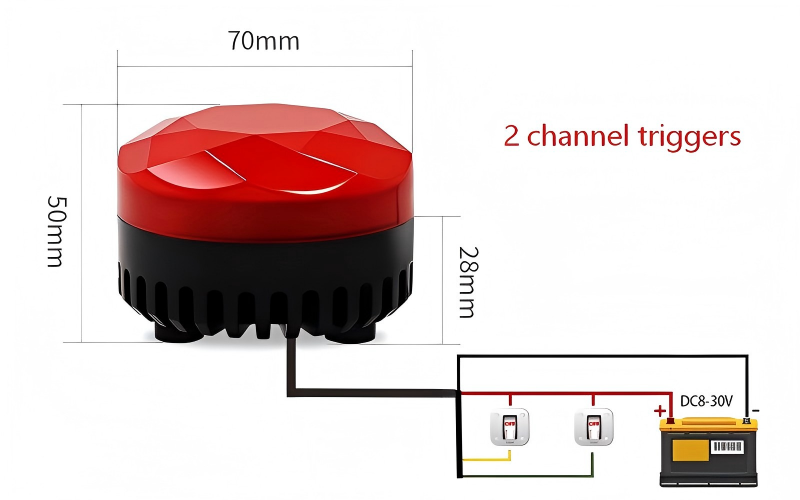

2-channel triggers control version

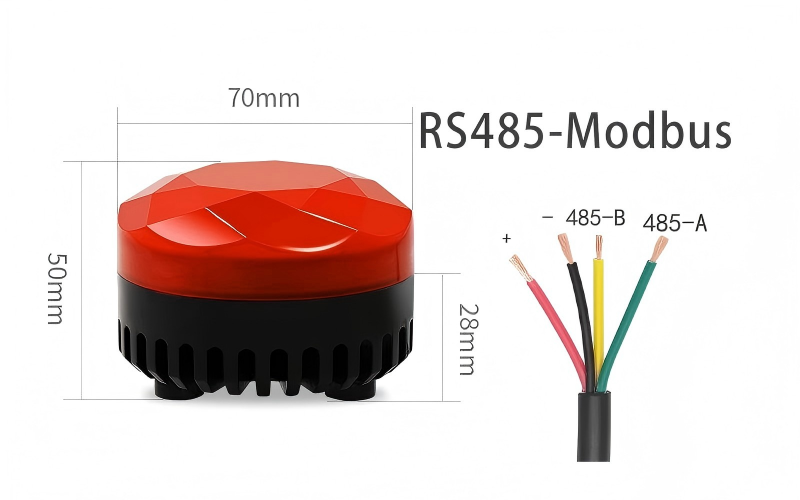

RS485-Modbus control version

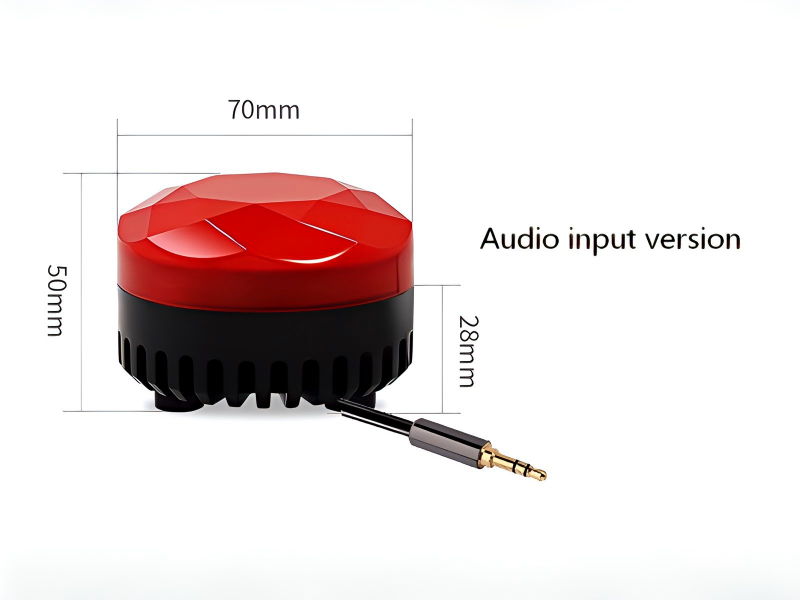

Audio input via plug version

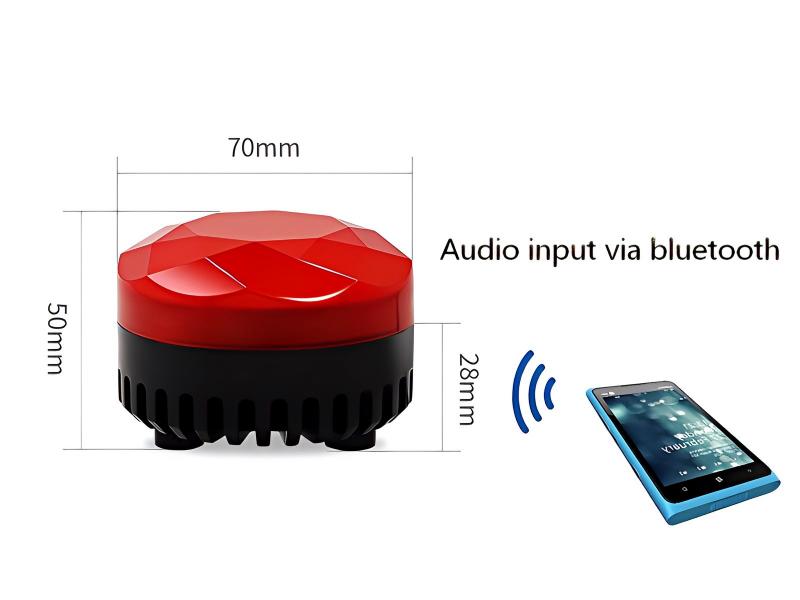

Audio input via bluetooth version

Dimension
